AR 901-200

Technical Specifications

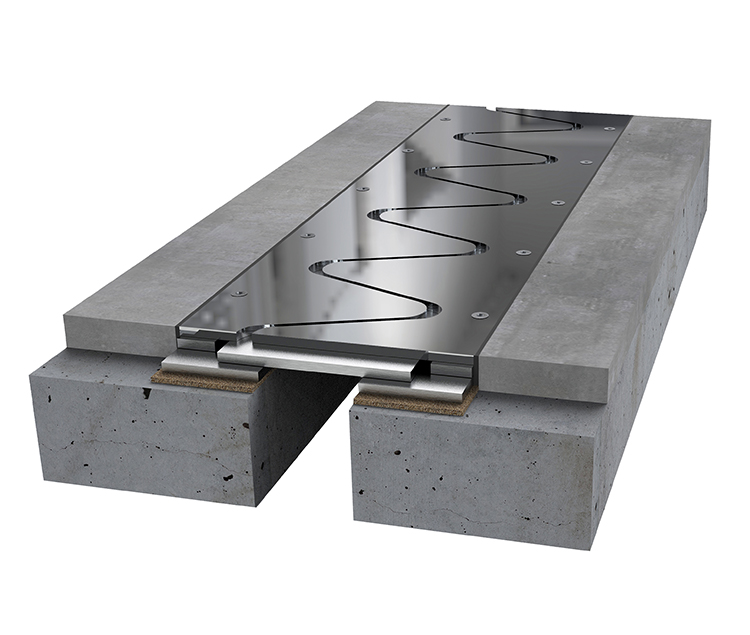

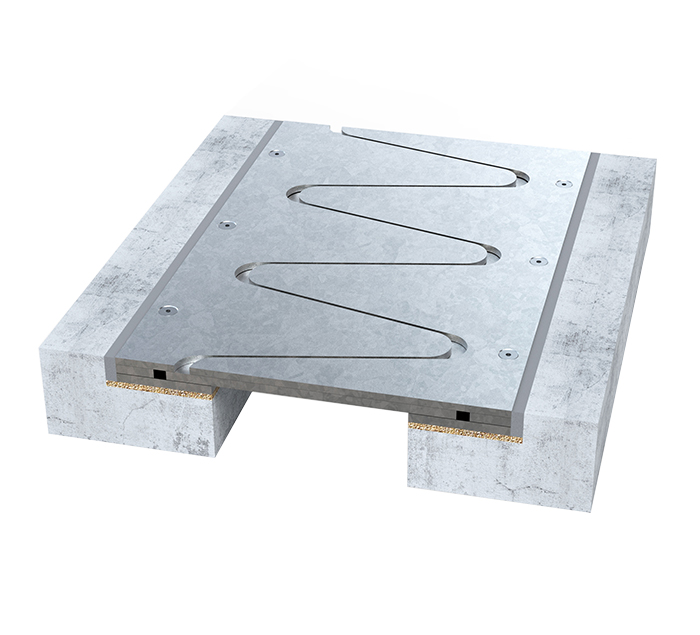

Flush Mounted Expansion Joint profile with steel reinforcement at below, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

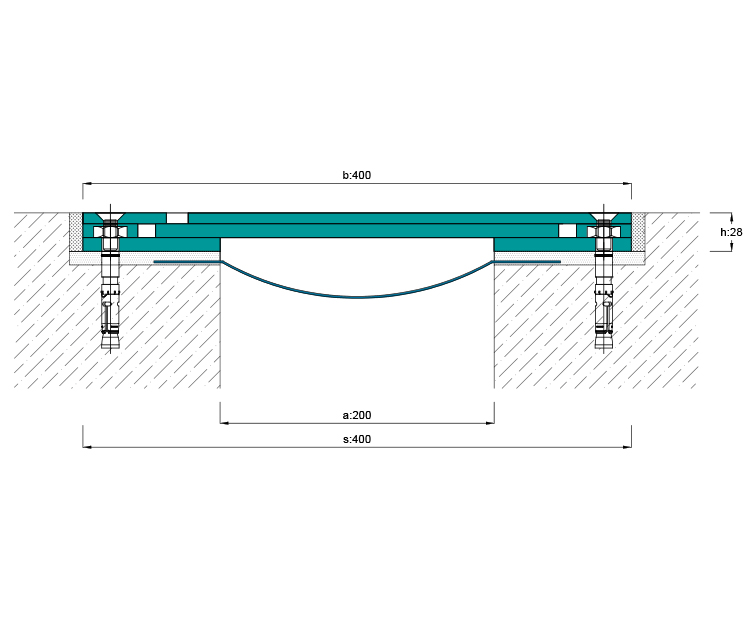

Width:	200 mm
Height-Load Capacity:	28 mm \| Resistant to 60 tones vehicle load and 9 tones forklift load.
Movement Capacity:	+/-10 mm
Profile Length:	2 mt
