Floor Profiles for under Finishing

AR 802-150

Technical Specifications

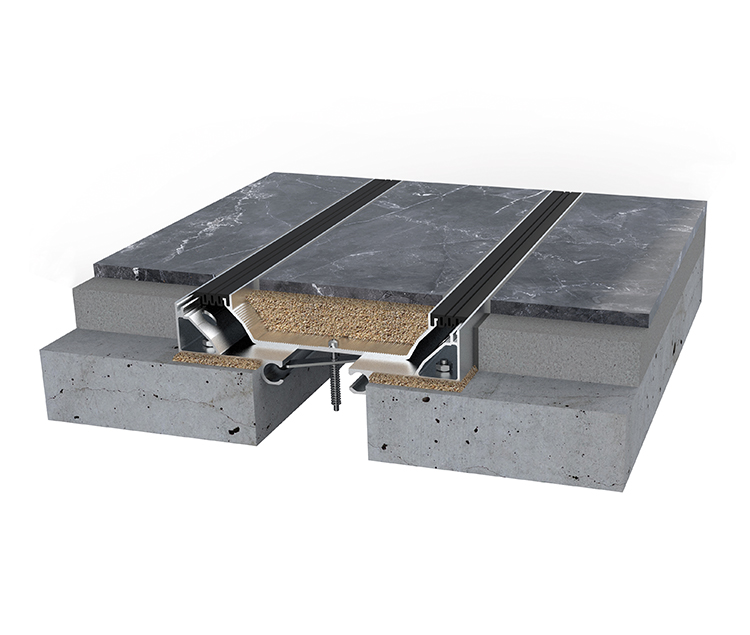

Flush Mounted Seismic Expansion Joint Floor Profile suitable for 15 cm gap and compatible to Granite, Marble and Ceramic. Water and Fire insulation materials are optional.

Width:	150 mm
Height-Load Capacity:	45 mm \| Resistant to pedestrian and cleaning machine load.
Movement Capacity:	+/- 70 mm
Profile Length:	3 mt
