Floor Profiles for Under Finishing

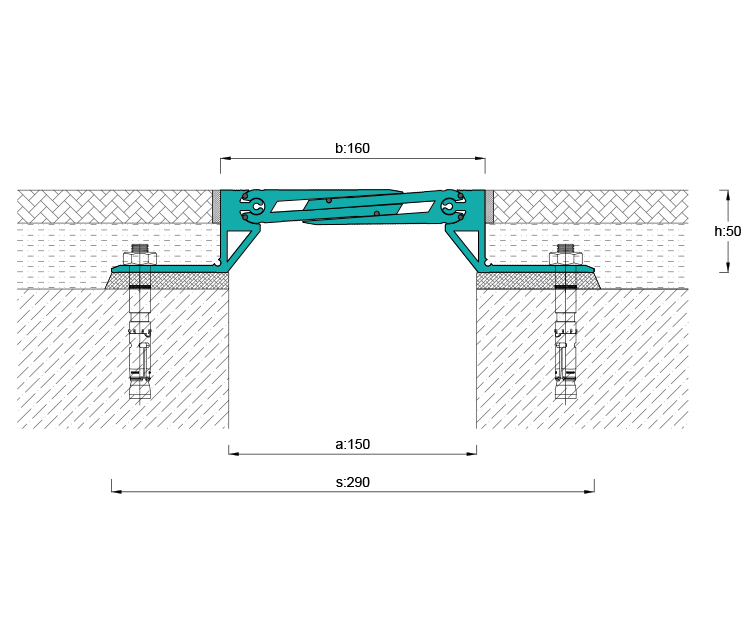

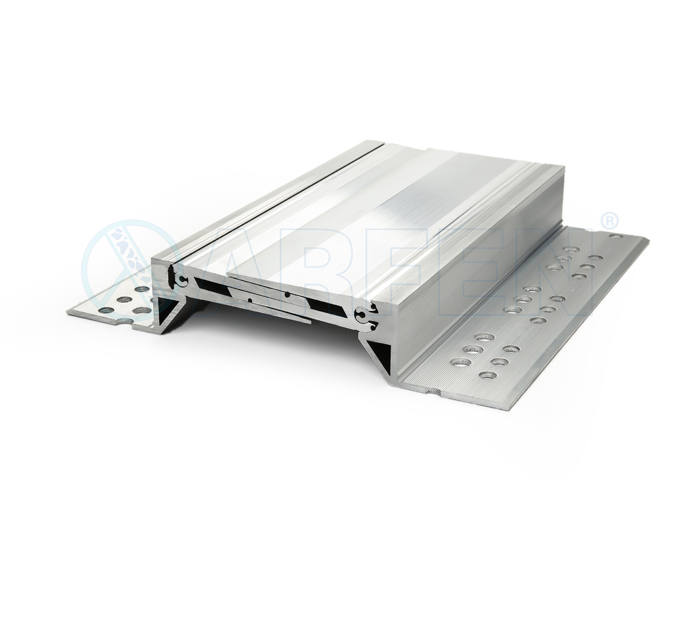

AR 823-151

Technical Specifications

Flush Mounted Expansion Joint Floor Profile suitable for Shopping Malls, Hospitals, Public Bıildings such as intense pedestrian and light vehicle load is used in areas.

Width:	150 mm
Depth-Load Capacity:	50 mm \| Resistant to 9 tones vehicle and 3,5 tones forklift load
Movement Capacity:	+/-20 mm
Profile Length:	4 mt
