AR 851-150

Technical Specifications

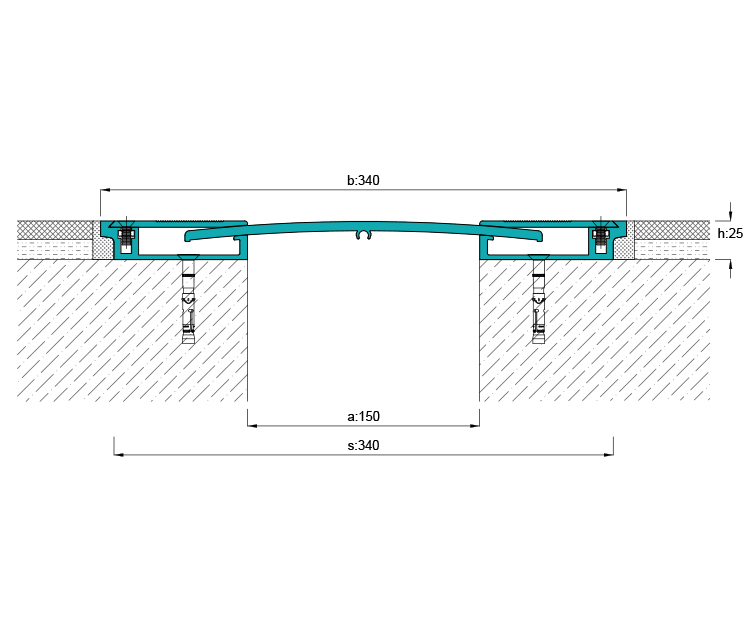

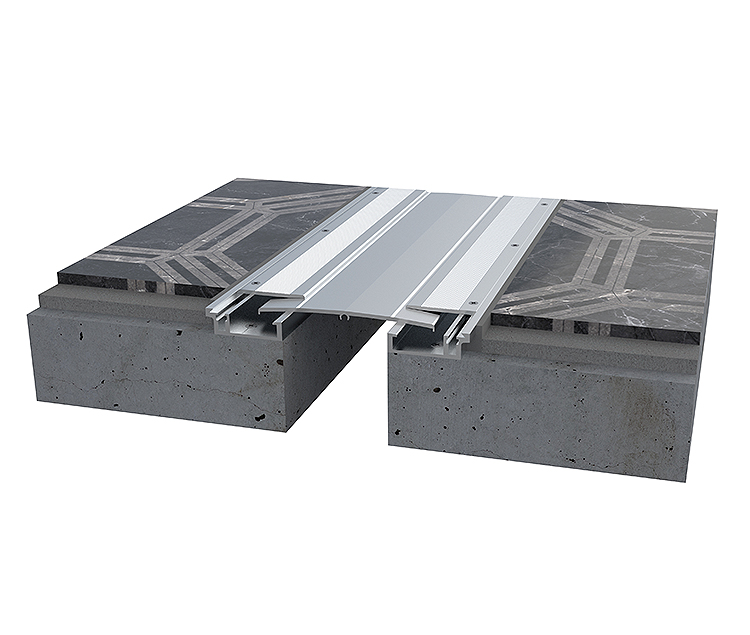

Flush Mounted Seismic Expansion Joint Floor Profile resistant to light vehicle load and has high movement capacity with aluminium surface.

Width:	150 mm
Height-Load Capacity:	25 mm \| Resistant to 2,5 tones vehicle load.
Movement Capacity:	+/- 60 mm
Profile Length:	3 lm
