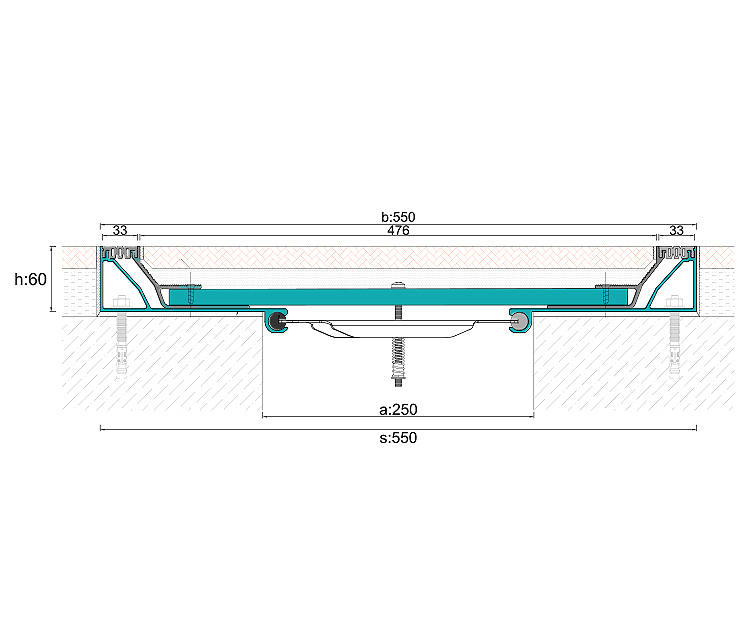

AR 802-250 (25 cm Gap)

Technical Specifications

Flush Mounted Seismic Expansion Joint Floor Profile suitable for 25 cm gap and compatible to Granite, Marble and Ceramic. Water and Fire insulation materials are optional.

Width:	250 mm
Height-Load Capacity:	60 mm \| Resistant to pedestrian and cleaning machine load.
Movement Capacity:	+/-125 mm.
Profile Length:	3 mt
