AR 931-300 (30 cm Gap)

Technical Specifications

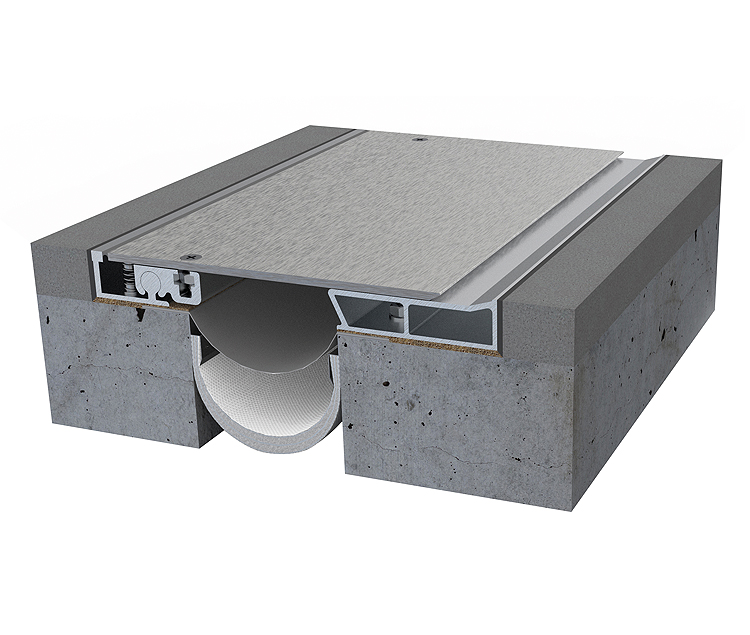

Flush Mounted Expansion Joint Profile with galvanized steel top surface and high movement capacity. One side Hinged

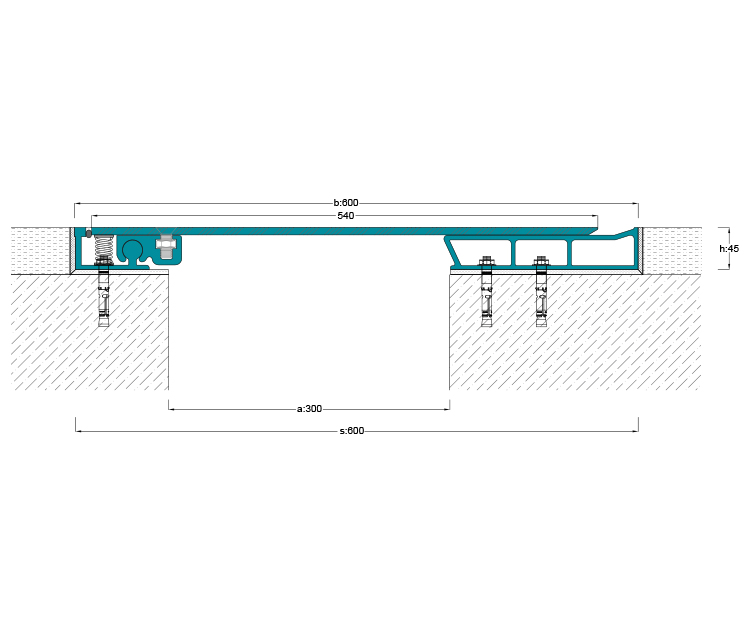

Width:	300 mm
Height-Load Capacity:	45 mm \| Resistant to 15 tones vehicle 3.5 tones forklift load
Movement Capacity:	+/-100 mm
Profile Length:	2 mt
