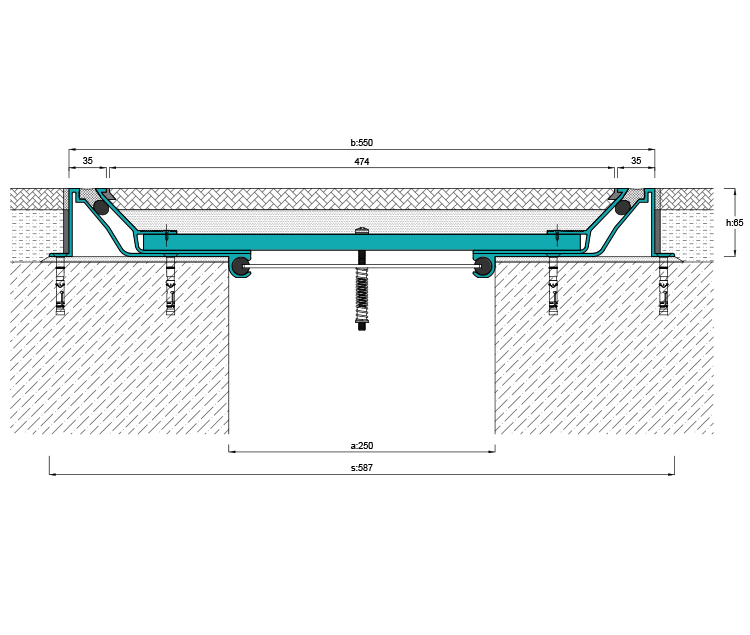

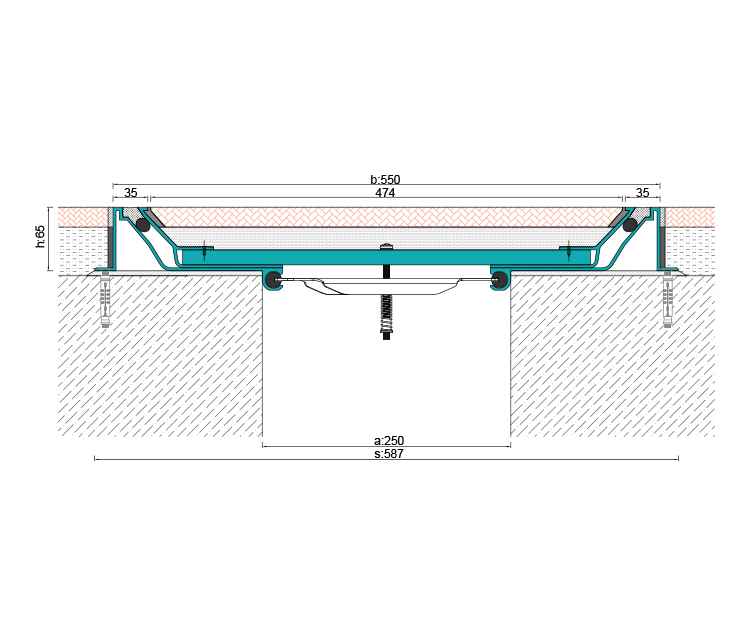

AR 806-250 (25 cm Gap)

Technical Specifications

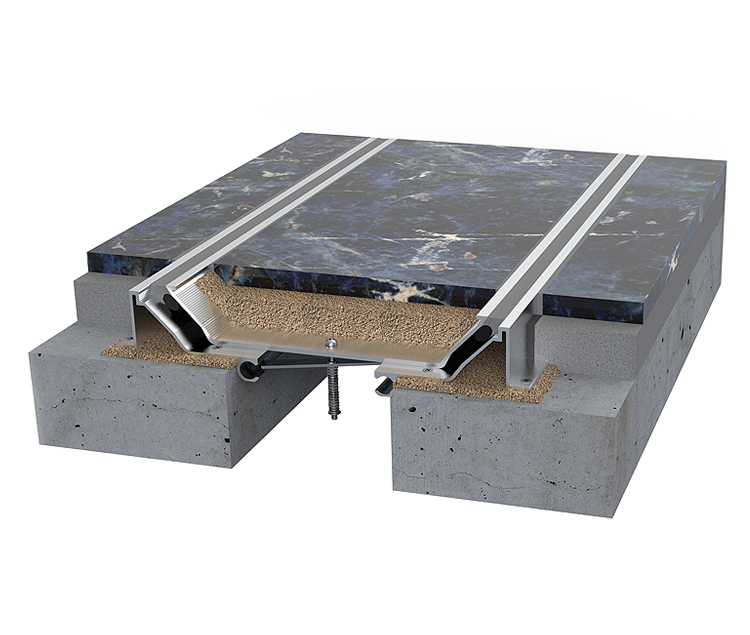

Sealant Applied, Flush Mounted Seismic Expansion Joint Floor Profile for with high movement capacity.

Width:	250 mm
Depth-Load Capacity:	65 mm \| Resistant to pedestrian and cleaning machine load
Movement Capacity:	+/-125 mm
Profile Length:	3 mt
