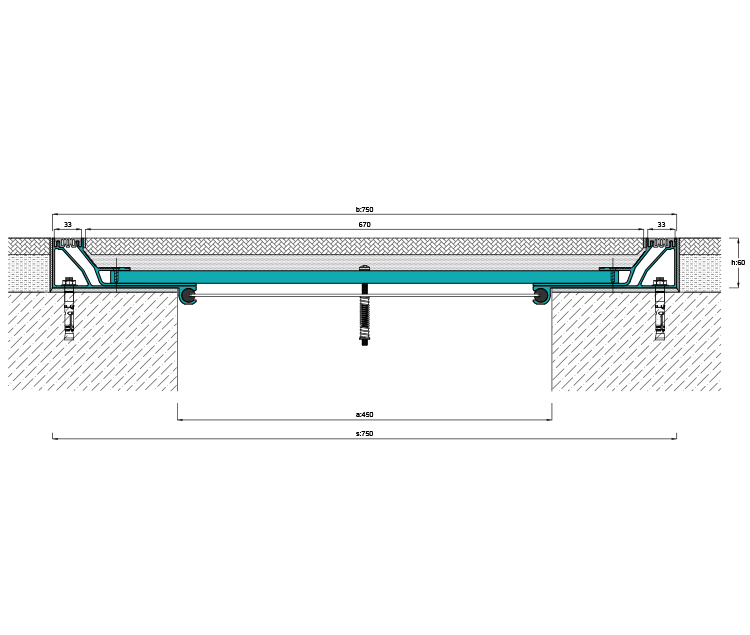

AR 802-450 (45 cm Gap)

Technical Specifications

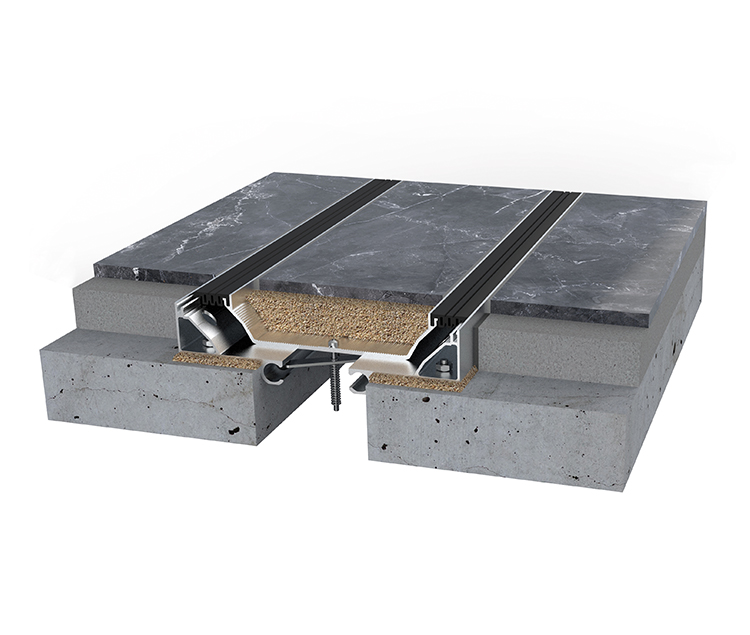

Flush Mounted Seismic Expansion Joint Floor Profile suitable for 45 cm gap and compatible to Granite, Marble and Ceramic. Water and Fire insulation materials are optional.

Width:	450 mm
Height-Load Capacity:	60 mm \| Resistant to pedestrian and cleaning machine load.
Movement Capacity:	+175/-225 mm.
Profile Length:	3 mt
