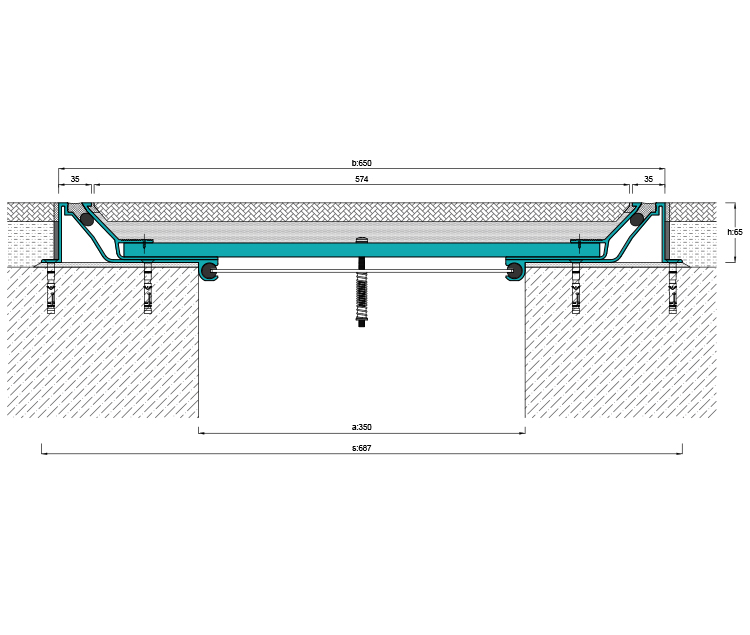

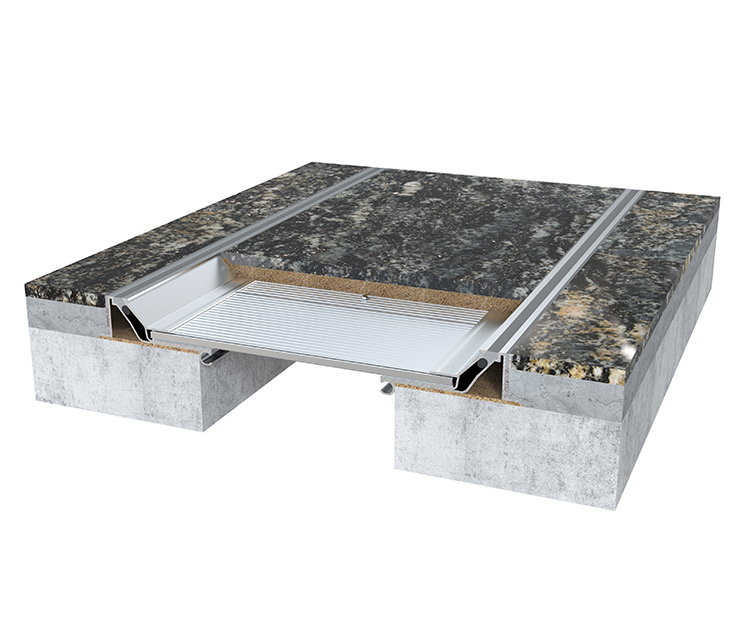

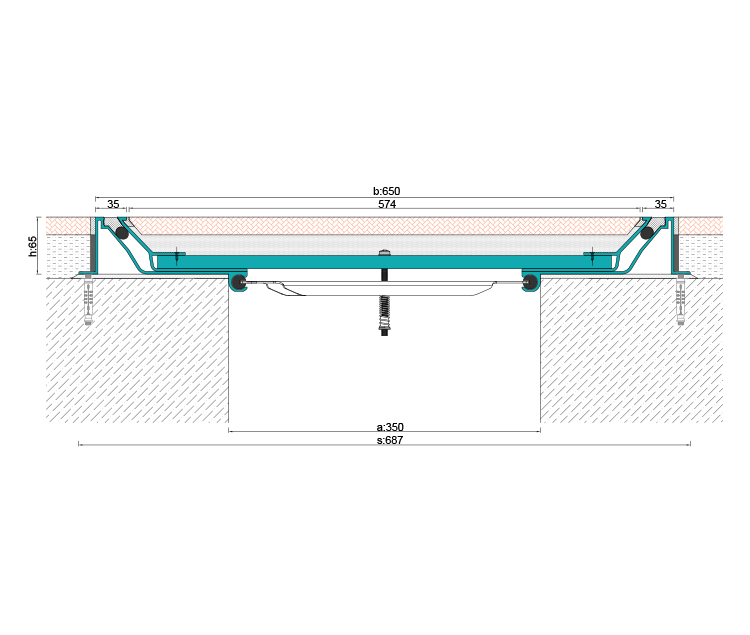

AR 806-350 (35 cm Gap)

Technical Specifications

Sealant Applied, Flush Mounted Seismic Expansion Joint Floor Profile suitable for 35 cm gap with high movement capacity.

Width:	350 mm
Depth-Load Capacity:	65 mm \| Resistant to pedestrian and cleaning machine load
Movement Capacity:	+/-175 mm
Profile Length:	3 mt
